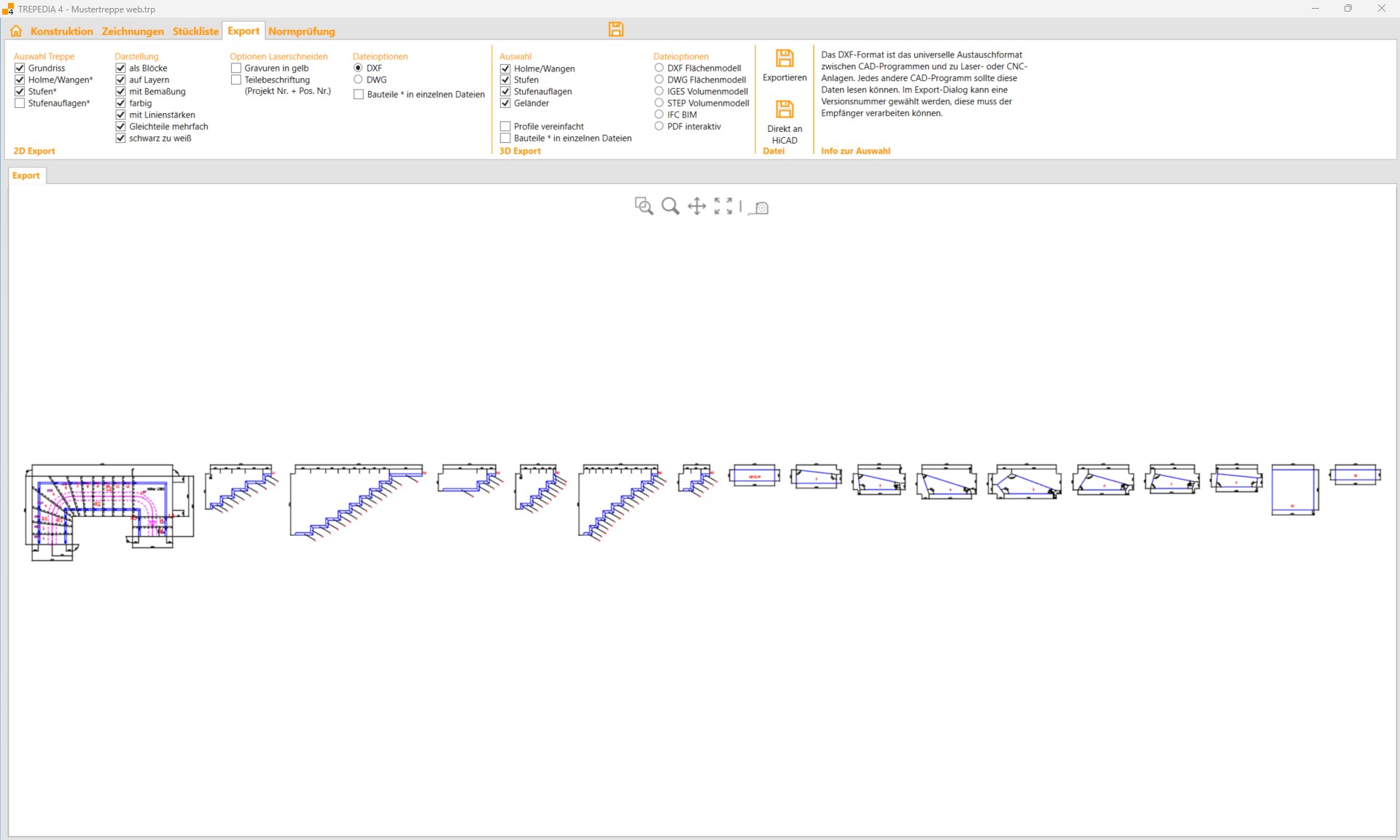

The “classic” option is exporting as a DXF file. This exchange format can be read by virtually all CAD programs and machine software. TREPEDIA also offers the option to select the underlying version number.
During export, all objects are placed on separate layers. Dimensions are handled correctly with a global scale factor to simplify further processing. Drawing elements can be transferred either as blocks or as individual drawing objects. Many additional options are available, such as an export optimized for laser cutting.
