Patterns

Reusable Railing Templates

Patterns define the appearance of the railing and create reusable templates for elements and fastening methods.

See how fast it works

The pattern defines the appearance of the railing. Since railings are often built in a similar way, templates for the railing and the fastening can be created and reused. However, everything can also be individually adapted.

In the pattern, all used elements are selected and configured. The relative position of the elements is dimensioned.

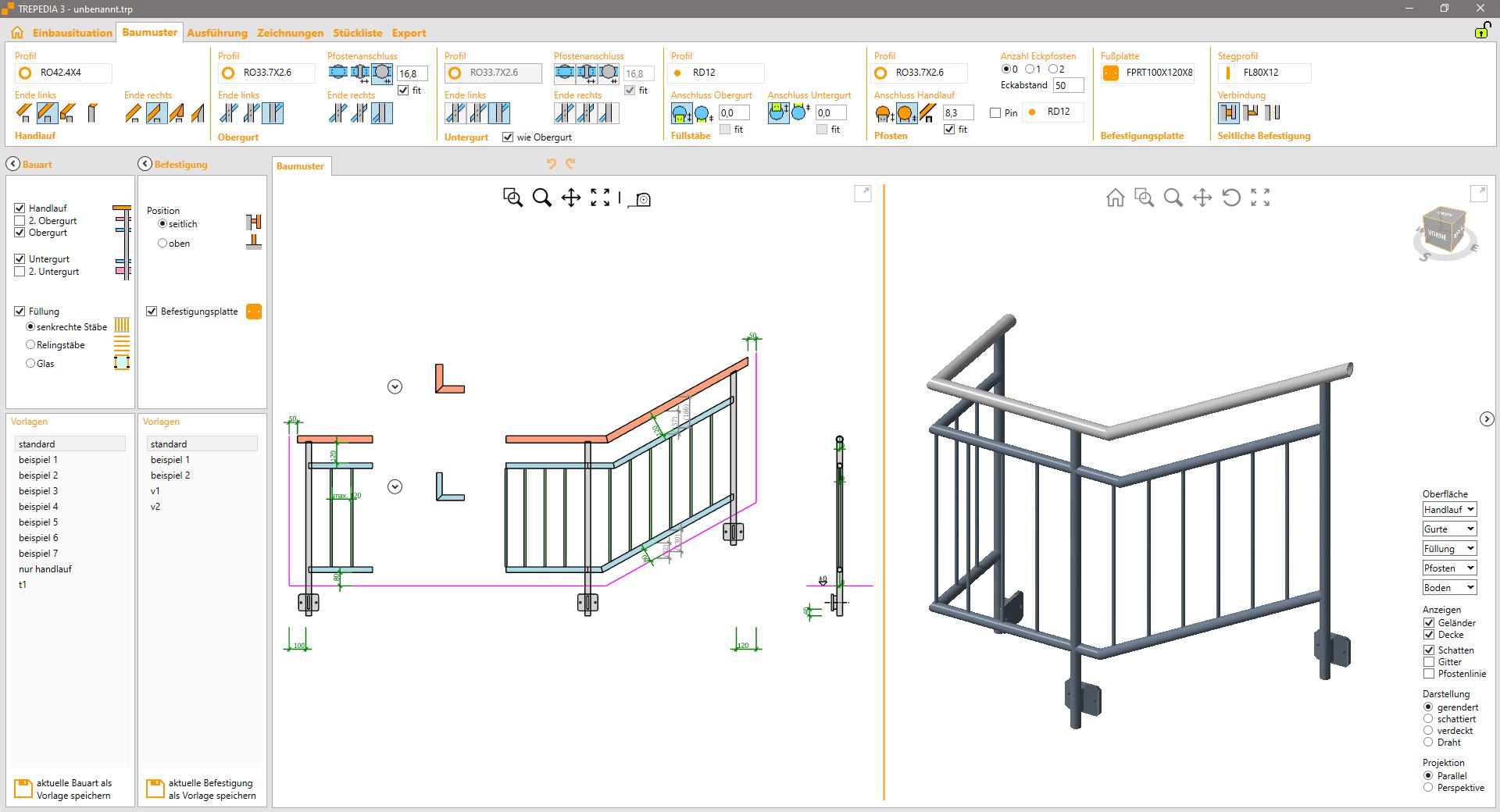

TREPEDIA railing pattern configuration

Pattern configuration with all railing elements and their dimensions

Template System

  • • Reusable patterns
  • • Company-specific standards
  • • Quick project setup
  • • Consistent design
  • • Easy modification

Element Configuration

  • • All railing elements definable
  • • Precise dimensioning
  • • Fastening type selectable
  • • Material specification
  • • Individual adjustments

Typical Patterns

Standard Railing

  • • Round tube handrail
  • • Vertical round bars
  • • Standard spacing
  • • Simple fastening

Design Railing

  • • Stainless steel handrail
  • • Glass infill panels
  • • Minimal posts
  • • Invisible fastening

Industrial Railing

  • • Robust construction
  • • Increased safety
  • • Easy to maintain
  • • Standard-compliant execution

Efficiency Through Standardization

The pattern system makes it possible to reuse railing configurations that have already been developed. This saves time during planning and ensures consistent quality. At the same time, full flexibility for individual adjustments remains.
