Supplementary individual part drawings with all details and notches to avoid misunderstandings.
See how fast it worksIndividual part drawings are usually not strictly necessary since the parts list already contains all cutting details. However, they can supplement the parts list to avoid misunderstandings. They also show notches clearly.

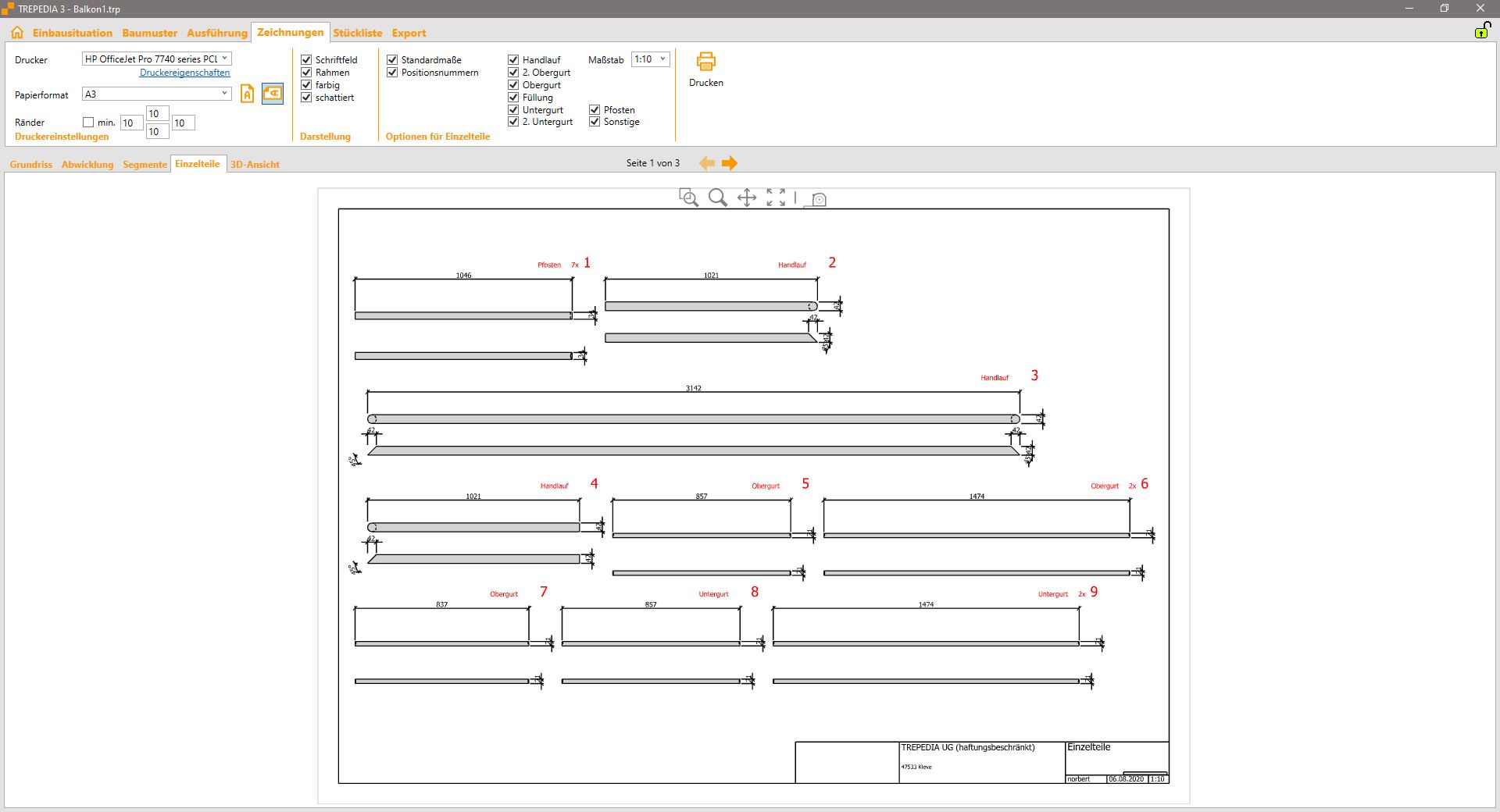

Detailed individual part drawings with dimensions and notches
Notches are critical details that are often difficult to describe in the parts list alone. Individual part drawings show these graphically and unambiguously.
Although individual part drawings are not always mandatory, they contribute significantly to quality assurance and help prevent costly manufacturing errors.
