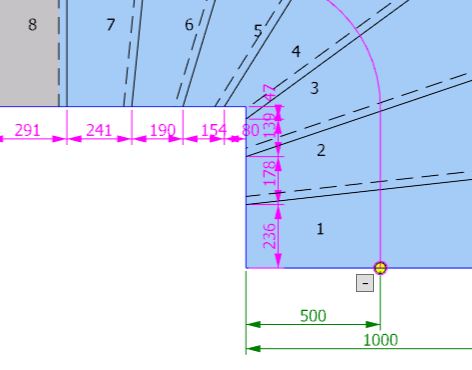

Step Winding |
|
| TREPEDIA winds stairs classically using the so-called angle method, thereby meeting the requirements of the DIN 18065 standard. If desired, the staircase as a whole can also be checked for compliance with this standard. Alternatively, it is also possible to wind the staircase with equally wide step heads, as is sometimes desired with half-turn stairs. |
|

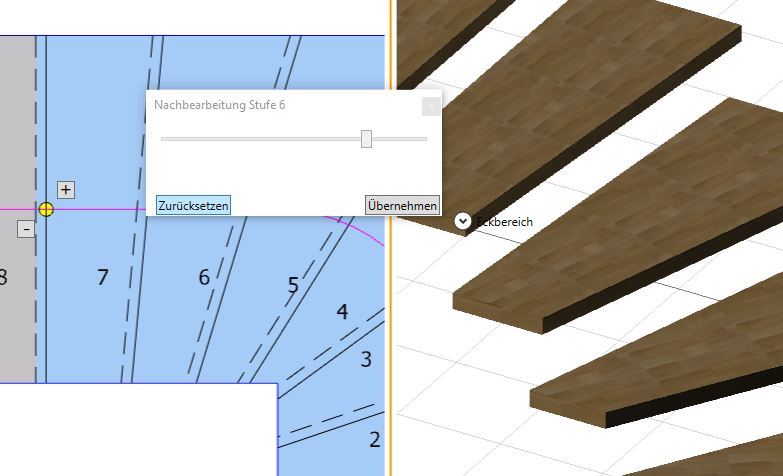

Manual Adjustments |
|
|
If necessary, each step front edge can be rotated individually. The result can be tracked directly in the 3D window.
In addition, the size of the minimum tread at the corner step (winder step) can be set, and the entire winding area can be adjusted by rotating the winder step. |

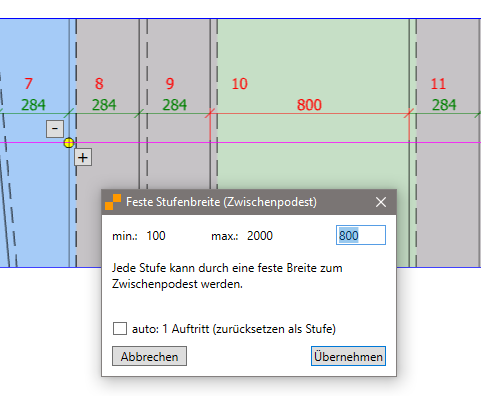

Intermediate Landings |
|
| Each step can deviate in its width from the automatically calculated tread and be assigned a specific value. This allows intermediate landings to be created. |
|
