Beams / Stringers

Different Visualization Forms

Stringers cannot always be dimensioned in a production-ready way, e.g. curved stringers. In such cases, exporting as a DXF file is often more practical. Nevertheless, there is also a drawing representation. For other types of construction, e.g. beam stairs, these drawings are very important.

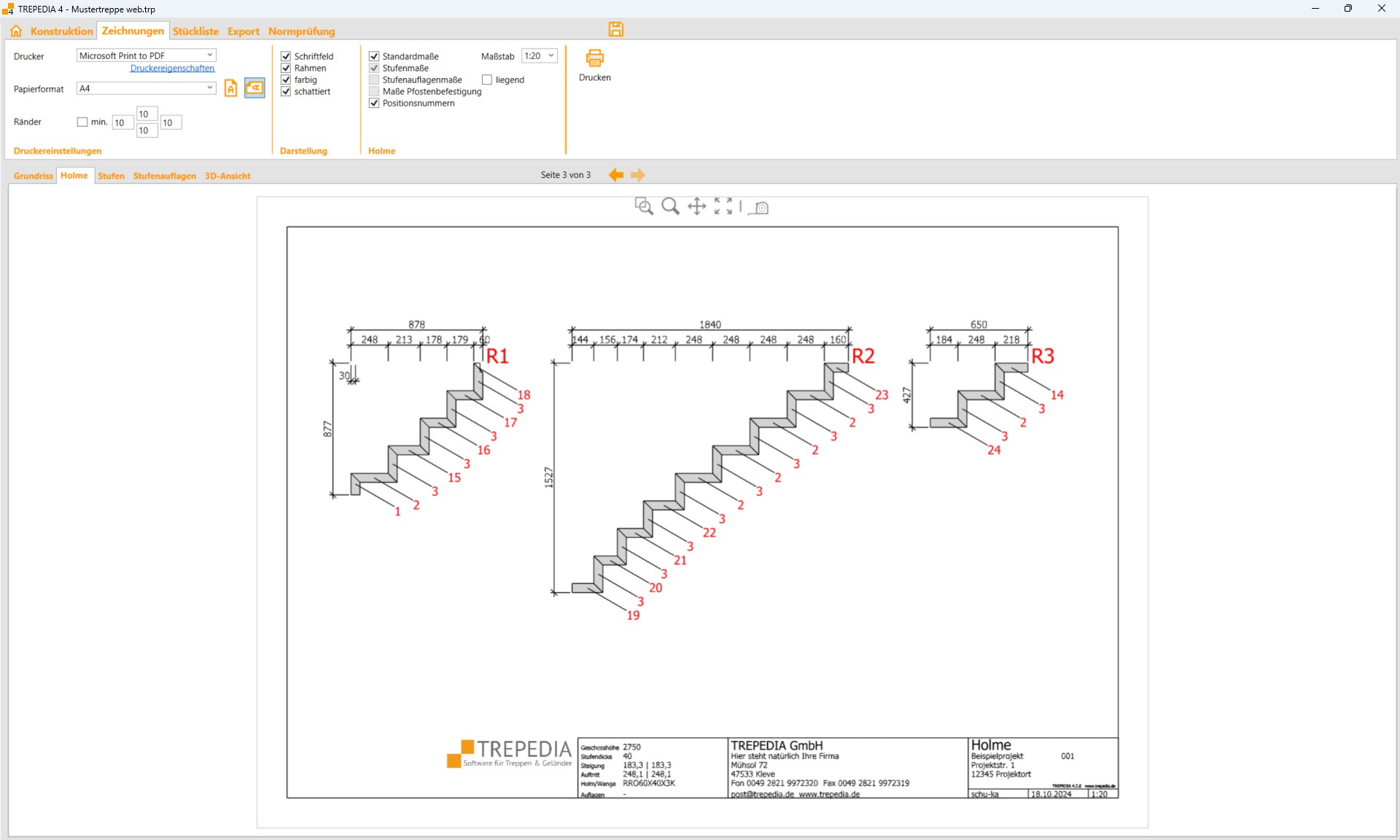

Detailed stringer drawing with dimensions and construction details

Beam Drawings

• Production-ready dimensions
• Step supports and drill holes
• Corner connections in detail
• All beam sections individually
• Ideal for metalworkers

Stringer Drawings

• Side stringers fully dimensioned
• Step cutouts and supports
• For simple geometric shapes
• Supplement to DXF export
• Construction documentation

Usage Recommendations

Drawing ideal for:

• Straight beams and stringers
• Stepped profiles
• Standard constructions
• Dimension-ready forms
• Documentation purposes

DXF export better for:

• Curved stringers
• Complex cutouts
• Laser/plasma cutting
• CNC machining
• Freeform shapes

Complete Dimensions

All relevant measurements for manufacturing

Construction Details

Corner connections and step supports

Production-Ready

Directly usable for manufacturing

Construction Drawings for Manufacturing
