Steps

Precise Drawings for Step Manufacturing

Automatic step drawings with exact dimensions for professional step manufacturers and production processes.

See how fast it works

Production-Ready Dimensions

The step drawings are of course especially important for the step manufacturer. The steps are dimensioned in such a way that they can be easily and practically marked. Some step manufacturers also use our TREPEDIA, ask about it.

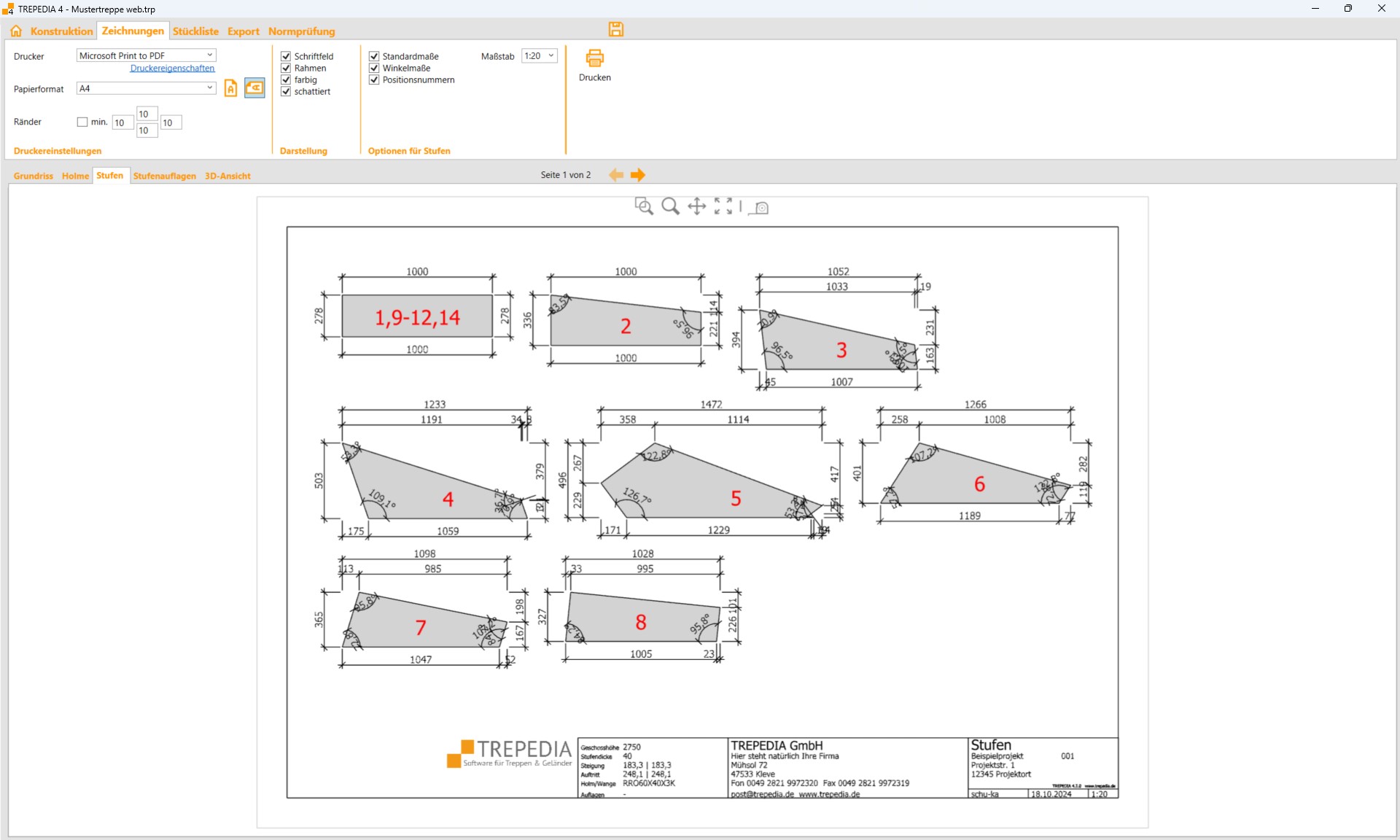

TREPEDIA Step Drawings Example

Detailed step drawings with all relevant dimensions

Wooden Steps

  • • Dimensions for marking
  • • Front and back edges
  • • Step thickness and width
  • • Material optimization

Sheet Metal Steps

  • • Flat patterns with bend allowance
  • • Bending angles and radii
  • • Relief holes
  • • CNC-ready representation

Grating Steps

  • • Standard dimensions considered
  • • Cutting optimization
  • • Fastening details
  • • Parts list integration

Step Manufacturer Partnership

Many step manufacturers already work with TREPEDIA and can manufacture your steps directly from our drawings.

💡 Ask your step manufacturer about TREPEDIA compatibility

Optimized for Marking

Dimensions optimized for easy marking

All Step Types

Wood, sheet metal, grating, and natural stone

Material Optimized

Minimal waste through intelligent dimensioning
